01 — Sugar Industry

Pioneers in plant and equipment manufacturing

Unmatched products for the sugar industry — turnkey solutions, heavy components and consultancy for mills worldwide.

View equipment Global sugar map
0+

Years in sugar

0+

Years engineering

0k

TCD capacity lines

0+

Countries on the map

Sector overview

Built for crushing seasons

For over half a century, we have been supplying top-of-the-line equipment for the sugar industry around the globe. With our experience of the sugar manufacturing sector, we provide turnkey solutions and consultancy to enhance operational efficiency, increase productivity and minimise costs.

With over 100 years of engineering experience, Qadri Group is the right choice to set up or upgrade sugar manufacturing operations anywhere in the world — from cane knives to complete milling tandems, designed, cast, forged and machined in-house.

Explore sugar services
Sugar mill erection Mill erection · On site

Technology partners

Engineered with European leaders

Licensed technology and joint engineering for certified sugar equipment in local and export markets.

Fives Cail Group

France

Fives Cail Group

Technology partner · Sugar

INVELT Group

Czech Republic

INVELT Group

Technology partner · Sugar

Global presence

Sugar map — mills & partners worldwide

The same footprint as on qadrigroup.pk — export markets across the Americas, Africa, Europe and Asia, with technology partners in France and the Czech Republic. Hover markers to explore.

Land Export markets Sugar factories Tech partners Pakistan HQ Hover countries & pins
Colombia USA · Louisiana Mexico Peru Guatemala Indonesia Thailand Philippines South Africa Tanzania Mozambique Pakistan

Process line

From cane to crushing

Every stage of cane preparation and milling is covered by Qadri product families — engineered to work as one line, up to 25,000 TCD.

01

Knives

Open the cane blanket ahead of shredding — balanced rotors, fast changeover.

02

Shredder

Top-fed & horizontal shredders — preparation index 90+.

03

Mills

2-roll MillMax®, 4-roll and 6-roll Qadri / Škoda designs.

04

Spares & drive

Rolls, couplings, headstocks, gears and moisture control.

Equipment

Cane preparation & milling

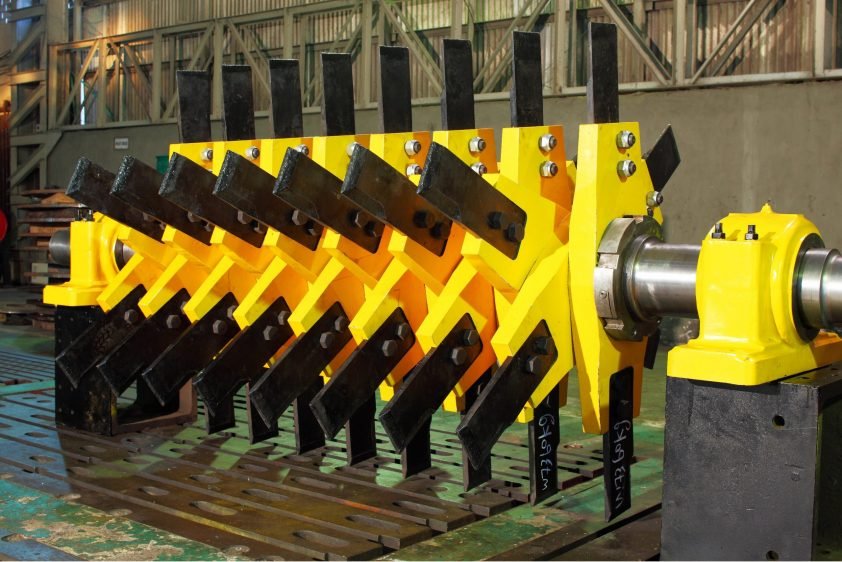

Cane knife assembly SG-01 · to 25,000 TCD

Cane preparation

Cane Knife Assembly

Heavy-duty knife sets installed on the main cane carrier — primary and secondary — to chop cane from the feeding table ahead of shredding.

  • Primary stagger 120° · secondary 60° — continuous action on the cane stream
  • Combined sets deliver 60–70 preparation index
  • 1676 mm swing diameter · ~60 m/sec tip speed at low rpm
  • Power: 15 kWh/ton fibre (primary), 30 kWh/ton (secondary)

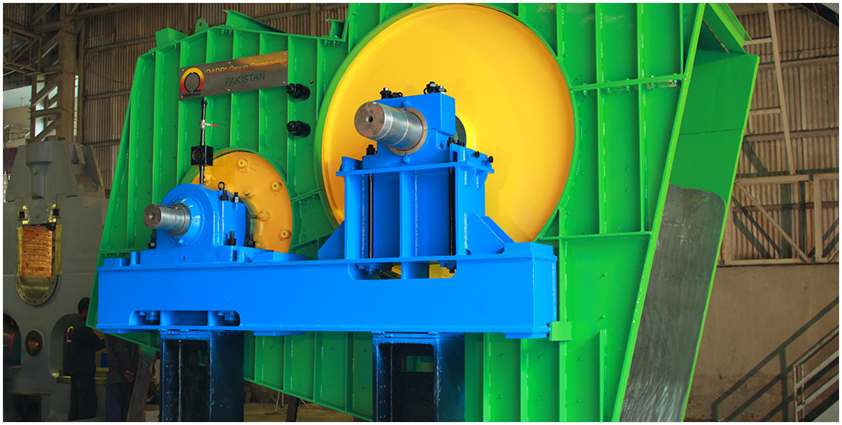

Top fed shredder SG-02 · Heavy duty

Cane preparation

Top Fed Shredder

Cane enters from the top and exits from the bottom. Multi-stage shredding with reducing clearance opens cell walls for excellent juice extraction.

  • Preparation index 90+ with fine fibre distribution
  • Higher bagasse density · lower final moisture and pol loss
  • Increases prepared-cane bulk density and plant capacity
  • Complete units, rotors and wear parts across shredder sizes

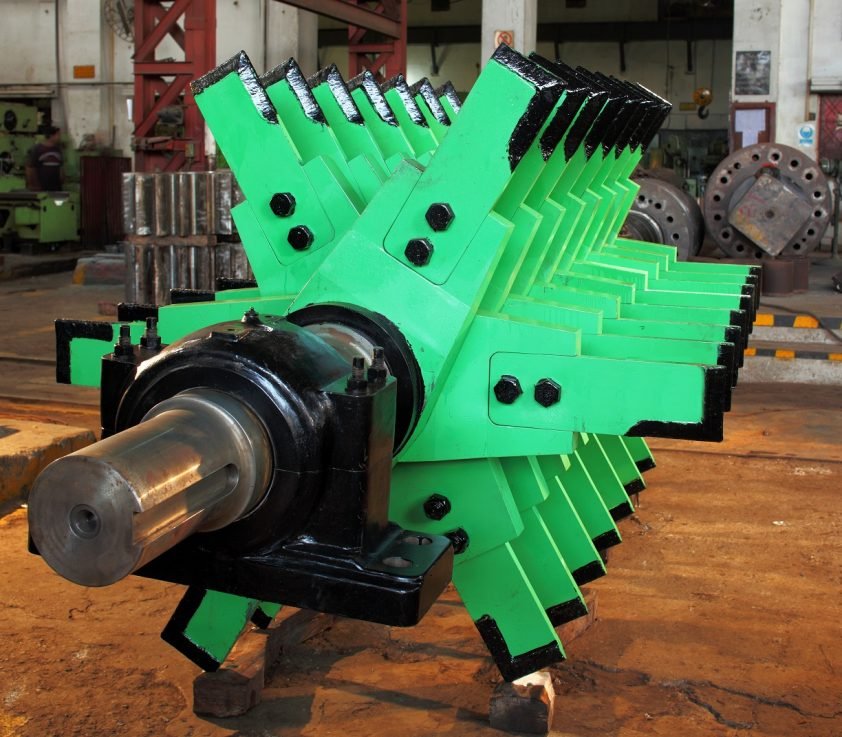

Horizontal fed shredder SG-03 · In-line

Cane preparation

Horizontal Fed Shredder

Installed on the main cane carrier (up to 15° inclination) before mills or diffuser. A feeding drum lifts cane between rotor and anvil grid.

  • Preparation index 90+ · long fibre with more open cells
  • No cane knives required before the fiberizer
  • 10–20% lower capital vs conventional preparation systems
  • Up to 20% energy saving · 1830 mm swing diameter

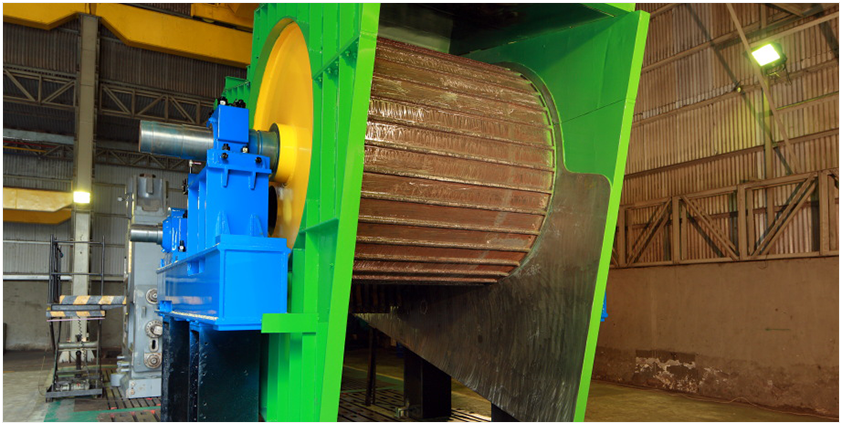

2-roll MillMax mill SG-04 · MillMax®

Cane milling

2-Roll Mill (MillMax®)

Latest-generation two-roller equipment that limits juice re-absorption in bagasse — competitive capital cost and lower operating expense.

  • No 3rd roll, no trashplate — ~25% less annual maintenance
  • RLD anti-reabsorption device at discharge
  • Up to 35% less power consumption per ton fibre
  • Pairs with existing drive to increase crushing

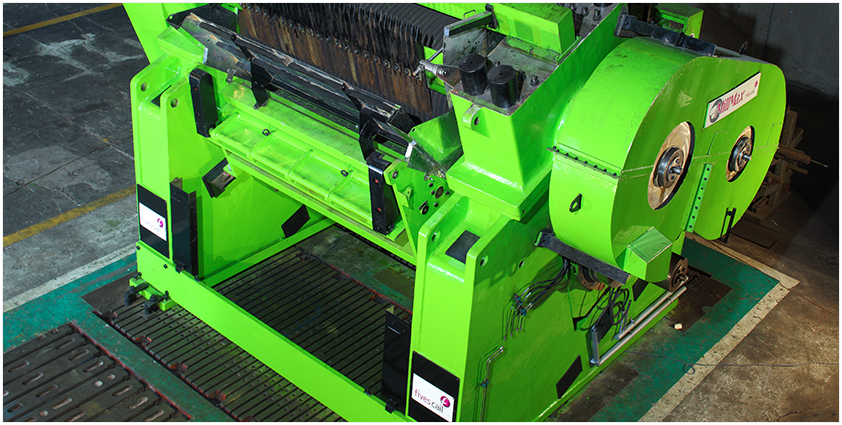

4-roll mill SG-05 · Qadri design

Cane milling · to 25,000 TCD

4-Roll Mill

Horizontally / vertically adjustable four-roll mill — floating top-roll, bagasse-roll, cane-roll and a heavy-duty 4th roll for long crushing seasons.

  • Large bearing journals · convertible 4-roll to 6-roll
  • All rolls convertible to perforated type for juice drainage
  • FEA-validated steel frames for long life
  • Independent water cooling on housing and bronze liner
6-roll mill SG-06 · Qadri–Škoda

Cane milling · to 25,000 TCD

6-Roll Mill

Six-roll mill commonly installed at position no. 1 in a milling tandem — three main rolls, two pressure-feeder rolls and one underfeed roll.

  • Higher extraction vs 4-roll mills
  • Heavy- / medium-duty pressure feeder options
  • Pinion, independent or chain-driven feeder rolls
  • FEA-analysed frames · perforated-ready rolls
Perforated mill roll SG-07 · Spares

Rolls & drive

Perforated Mill Roll

Extra drainage paths through the shell lift juice extraction and cut final bagasse moisture — multi-hole brass nozzles resist choking.

  • May increase juice extraction by 1–2.5%
  • Reduce bagasse moisture by 2–3%
  • Ideal for discharge rolls and last-mill top roll
  • Shells: grey CI, SG iron, cast steel, Qast-Alloy
Multi-misalignment coupling SG-08 · Drive

Rolls & drive

Multi-Misalignment Coupling

Eliminates undesirable tail-bar and coupling effects — free floating of the top roll with no axial load transmitted to the gear.

  • Fully compensates gear-shaft to top-roll misalignment
  • First choice with new-generation gearing
  • Safe operation assured by back-up slings
  • Competitive capital cost · low-cost maintenance

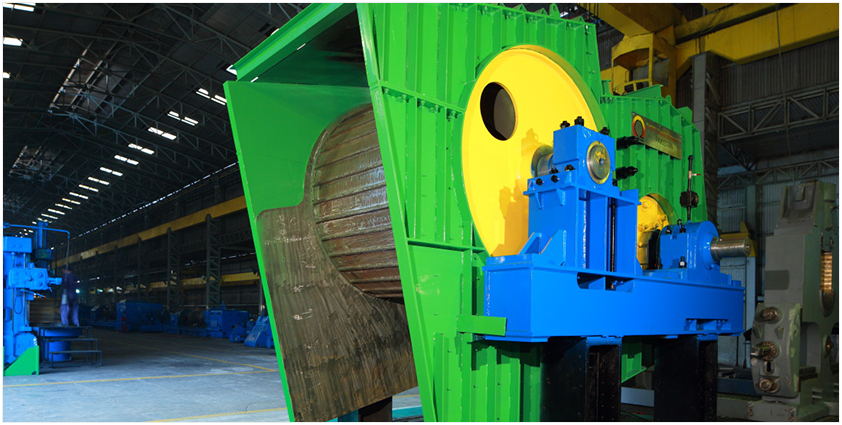

Moisture control unit SG-09 · MCU

Rolls & drive

Moisture Control Unit

Installed on a 4-roll conventional mill to reduce bagasse moisture at the discharge roll — extra juice drainage without a separate drive.

  • Hydraulic limiting device · up to 220 bar
  • Charges from existing mill-house hydraulics
  • Fits existing 4-roll and 6-roll mills
  • Easy install · low maintenance

Spares

Components that keep the tandem running

Cast, forged and machined in-house — from headstocks to slow-speed gears — with FEA, Magma Soft casting simulation and NDT as standard.

Head Stocks

AISI 1045 · FEA & Magma Soft · UT / MT tested

Top Caps & Side Caps

Hydraulic twin sets · fixed / swivel designs

Mill Rolls & Shells

Standard & perforated · blank / machined

Bearings & Liners

Water-cooled steel housing · bronze liners

Crown Pinions

Involute profile · induction hardened

Scrapers & Trash Plates

Cast steel / SG iron · pre hard-faced

Shredder Rotors

ISO 1940 balancing · hard-faced hammers

Shafts & Slow Gears

Forged EN grades · gears to 6 m OD

Services

More than manufacture

Complete turnkey solutions, consultancy and project management — from first audit to seasonal refurbishment.

01

Consultancy

Identify critical issues and opportunities that ensure growth across the global sugar manufacturing industry.

02

Plant upgradation

Latest design, products and spares to set up new or upgrade existing sugar operations.

03

Case study / audit

Apply findings from successful projects — mill-house and process-house performance audits.

Engineering Studies Mill Erection Erection & Commissioning Refurbishment & Re-shelling Reverse Engineering On-site NDT Headstock Replacement
Mill upgradation

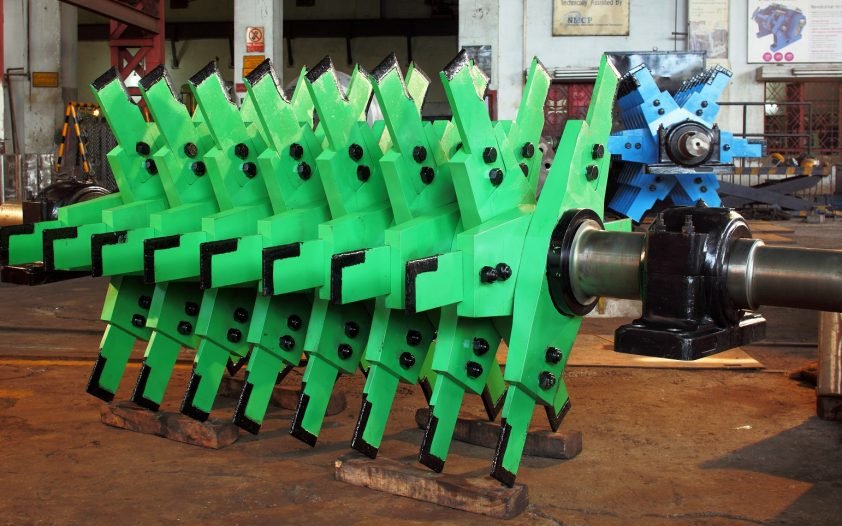

Cane cutter works

Next project

Send the mill drawing. We'll take it from there.

Whether you need a spare roll, a shredder upgrade or a full tandem — our sugar team is ready.

Contact sugar team See cement →
